Professional High Precision Two Color Aluminum Foil Printer Roll to Roll Plastic Label Flexo Printing Machine for Packaging Material Decoration Print

Customization: Available
After-sales Service: Video Support
Warranty: 12 Months

Product Description

Basic Information

Model NO.
RTRY-560B
Type
Flexo Printing Press
Style
Flexographic Printing Presses
Structure
Rotary Printing Press
Color & Page
Multi-Colour Printing Press
Usage
Label Printer, Paper Printer, Card Printer, Cloths Printer, Tube Printer, Bill Printer
Automatic Grade
Automatic
Print Interface
Electricity
System supported
Customized System
Product Name
Flexo Printing Machine
Machine Type
Letterpress Printing Machine
Printing Material
Adhesive Paper/Label Sticker/Aluminum Foil
Function
Die Cutting, Slitter, Sheet, Cold Foil, Laminating, UV
Transport Package
Wooden Box
Specification
2*1.4*1.4m
Origin
China
HS Code
8443140000
Production Capacity
30sets/Month

Product Presentation

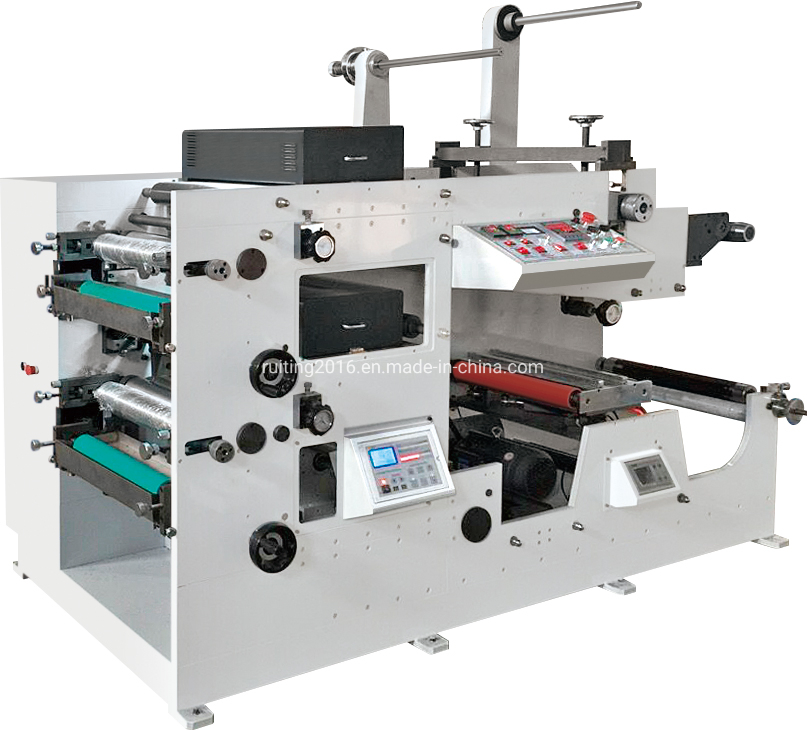

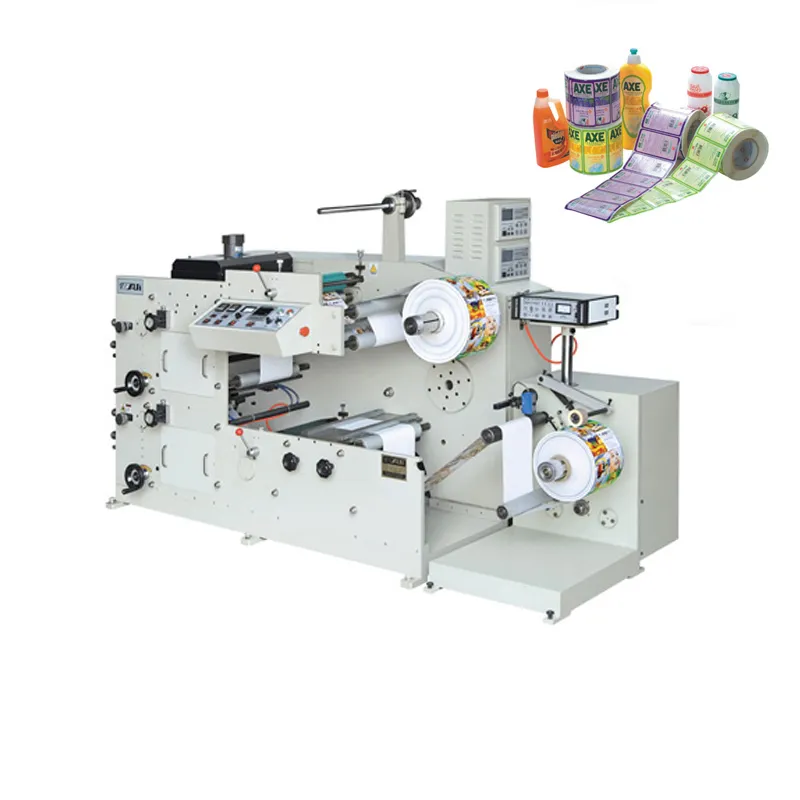

Professional High Precision Two Color Aluminum Foil Printer Roll to Roll Plastic Label Flexo Printing Machine

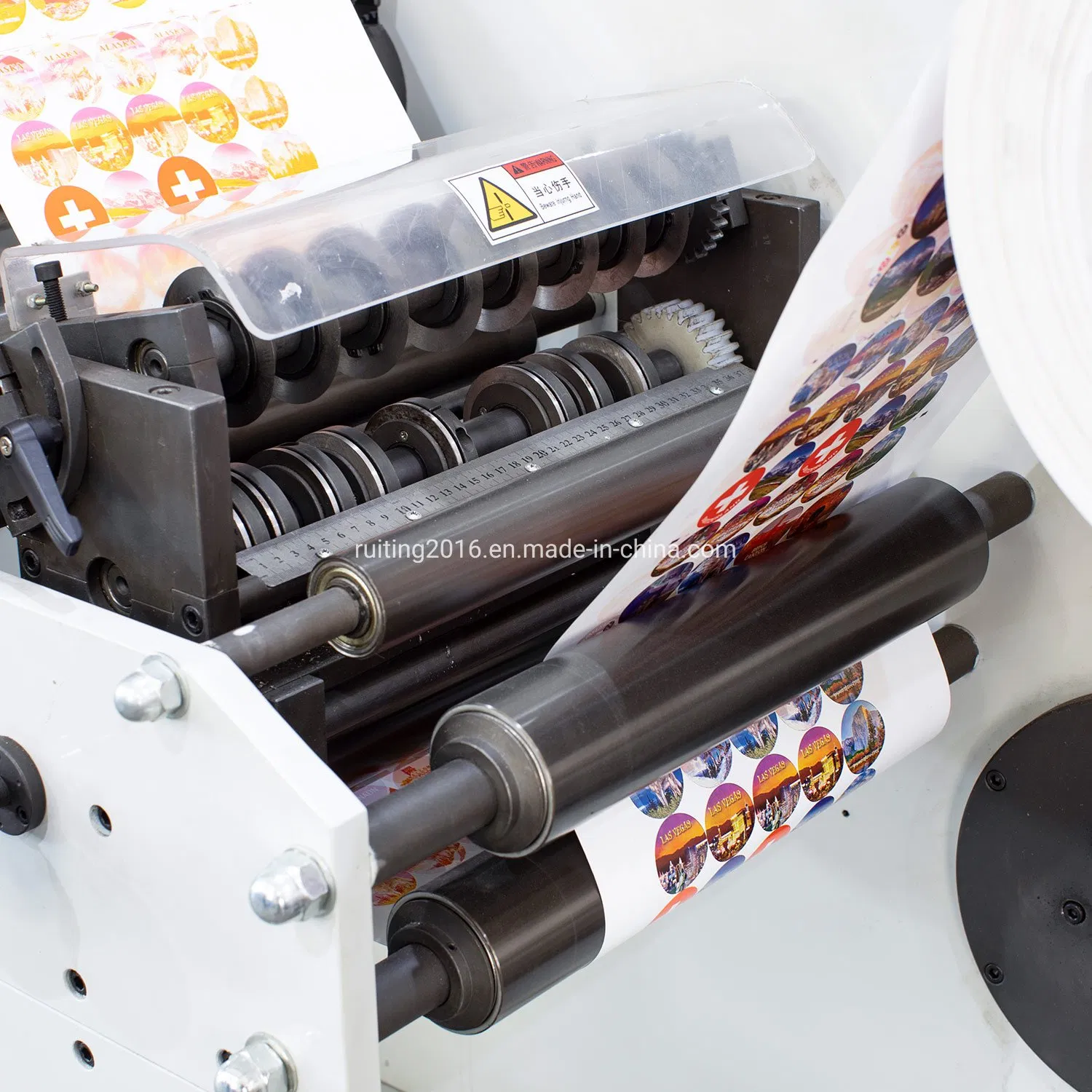

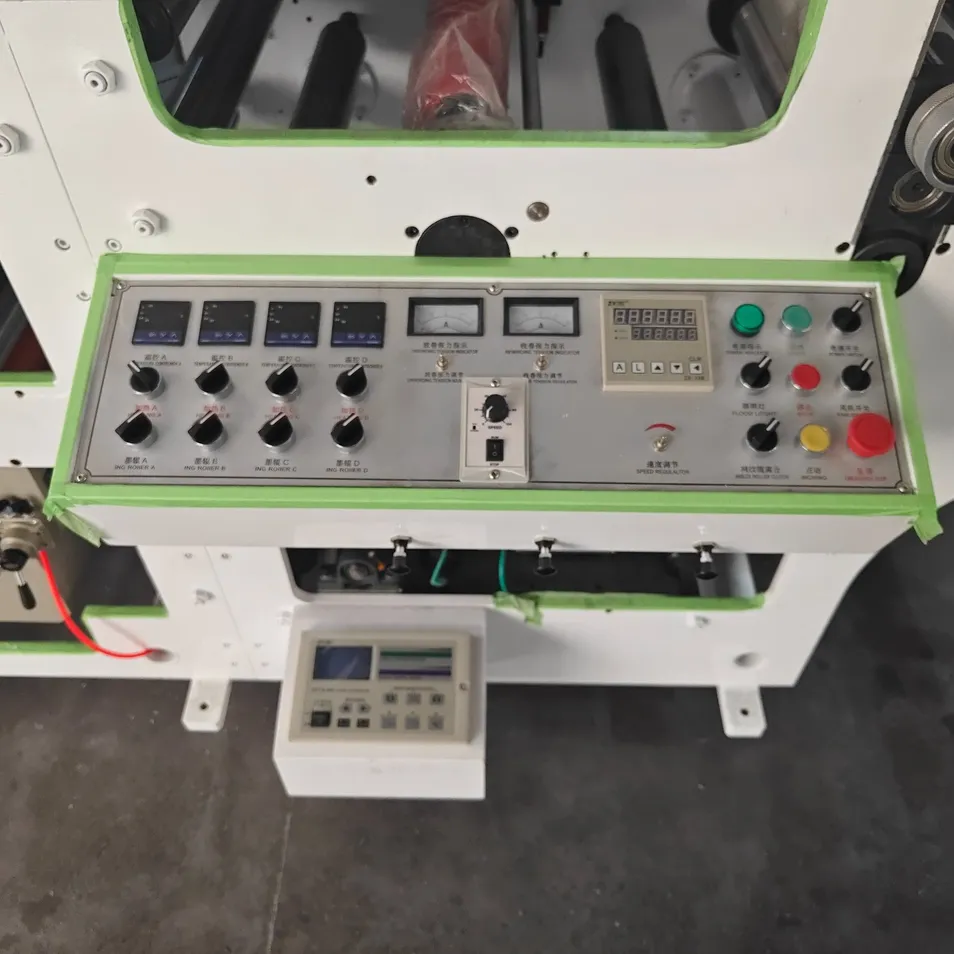

Roll to Roll Flexo Printing Machine Detail 1

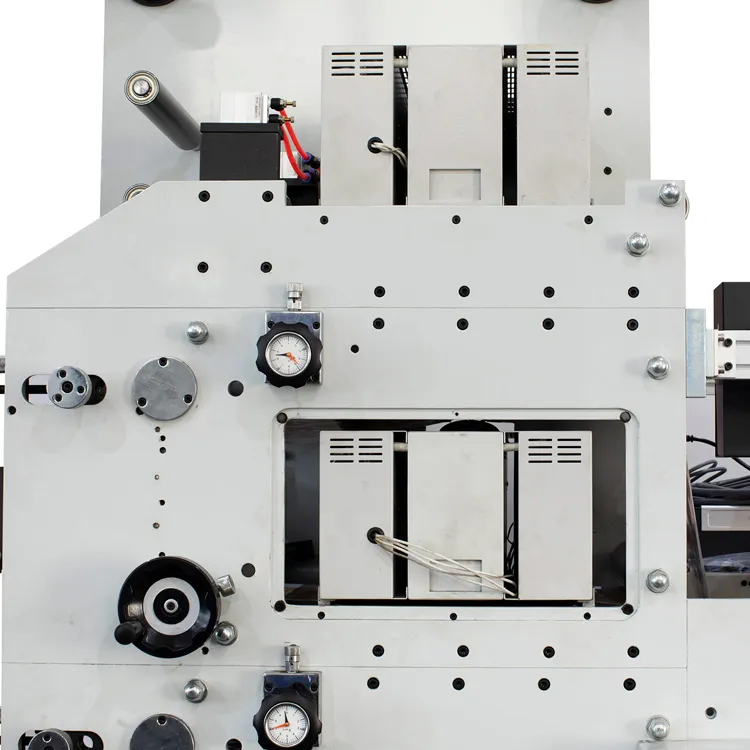

Roll to Roll Flexo Printing Machine Detail 2
Component 1
Component 2
Component 3

Product Description

  • The main motor adopts imported stepless frequency control.
  • Feeding and discharging device are controlled through magnetic powder brake and clutch.
  • Adopt ceramic mesh distributor roller, which is durable, wear proof, and corrosion resistant. It is favorable to reduce the replacement frequency of mesh roller and improve the printing efficiency.
  • The printing unit can register in 360 degrees; each printing unit can adjust mesh roller and improve the printing efficiency.
  • Every printing unit is equipped with a group of infrared dryers respectively.
  • The feeding and discharging device use an air-expansion core shaft.
  • The inking roller can automatically fall off at stoppage and rotate at low speed in order to keep the ink from being dry and solid.
  • The roll feeding, printing, polishing, auto infrared drying, laminating and rolling can be processed in one processing.
  • It features wide application, pollution-free of printing ink, high economic benefit, and high printing speed. So it is an ideal printing machine for the commercial bill, paper card, and high-class free adhesive label.

Specifications Table

Model RTRY-560B
Printing speed 80m/minute
Printing color number 2 colors
Max width of paper 560mm
Max printing wide 560mm
Max unwinding diameter 600mm
Max rewinding diameter 600mm
Printing length 180-380mm
Precision of overprint ±0.15mm
Overall dimension 2.0(L) × 1.4(W) × 1.4(H)m
Weight about 1000kg

Detailed Structure & Features

Structure Detail 1
Structure Detail 2
Structure Detail 3
Structure Detail 4
Structure Detail 5

Frequently Asked Questions

Q1 Are you a factory or a trading company?
We are a professional manufacturing factory.
Q2 What is your after-sales service policy?
We offer our customers a lifetime technical support and service.
Q3 What is the estimated shipping and delivery time?
The shipping time is around 15-30 days, depending on the specific machine model ordered.
Q4 What support is provided if the machine stops working?
You can reach out via online communication methods or video call. Our engineers will check the problem. If any spare parts break within the warranty period, we will offer replacements for free.
Q5 How is installation and commissioning handled?
If necessary, technicians can be dispatched to your location to install, commission, debug the machine, and train the operators. The buyer shall cover all travel expenses including visa procedures, round-trip tickets, food, accommodation, and personal expenses during the service trip.
Q6 What are the terms of the machine warranty?
The warranty period is one year. During this period, if the machine is damaged due to non-human operating errors, we will provide free replacement accessories (excluding wearing parts). The express or transportation fees are to be borne by the customer.
