| Model | TOPY-VP420 | TOPY-VP520 | TOPY-VP620 | TOPY-VP730 | TOPY-VP800 |
|---|---|---|---|---|---|
| Bag Size (L) | 70-300mm | 80-350mm | 80-380mm | 200-400mm | 150-500mm |
| Bag Size (W) | 60-200mm | 100-250mm | 100-300mm | 140-350mm | 250-400mm |
| Bag Speed | 10-70 bags/min | 15-60 bags/min | 15-60 bags/min | 10-50 bags/min | 10-30 bags/min |
| Film Width | 120-420mm | 220-520mm | 220-620mm | 300-720mm | 340-800mm |
| Air Consumption | 0.7Mps 0.5m³/min |
0.8Mps 0.4m³/min |
0.8Mps 0.4m³/min |
0.8Mps 0.5m³/min |
0.6Mps 0.7m³/min |
| Power Supply | 2.2kw 220V 50/60HZ |
2.5kw 220V 50/60HZ |
4.0kw 220V 50/60HZ |
4.5kw 220V 50/60HZ |
4.5kw 220V 50/60HZ |
Sugar, Salt, Pepper, Spices, Flour, Semolina, Milk Powder, Various Sorts Of Powders, Etc. (non-food: Detergents, Plaster, Talc, Chemical Additives).
Coffee Beans, Cocoa, Rice, Sesame, Seeds, Small Granules Etc.
Snack Foods [popcorn/chips], Cereal & Health Foods.
Biscuits & Bakery, Pasta, Grated Cheese, Nuts, Dried Fruits And Vegetables, Frozen Vegetables, Dried Mushrooms, Pet Food.
Medium-Nuts, Small Metal/plastic Items, Bolts, Washers, Auto, Electrical And Plumbing Parts Etc.

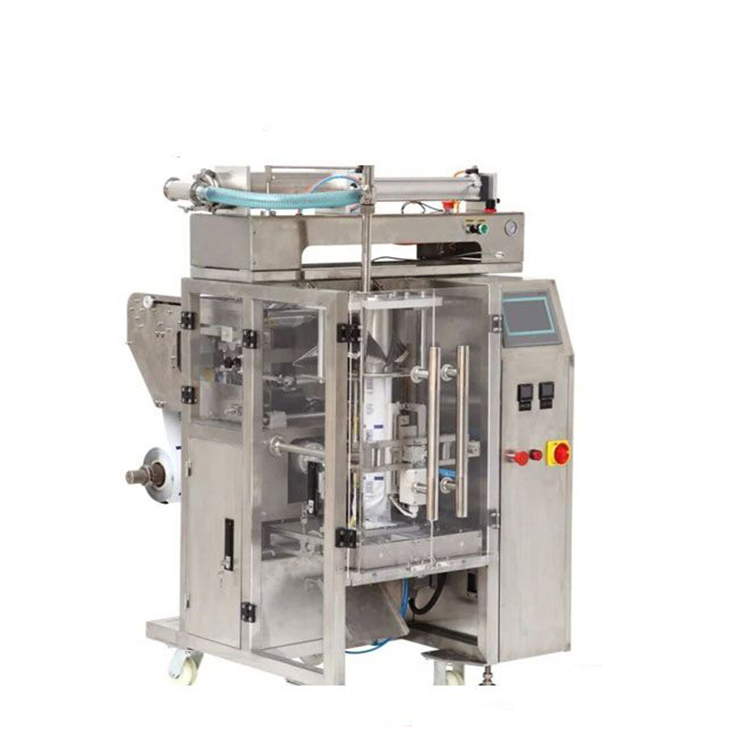

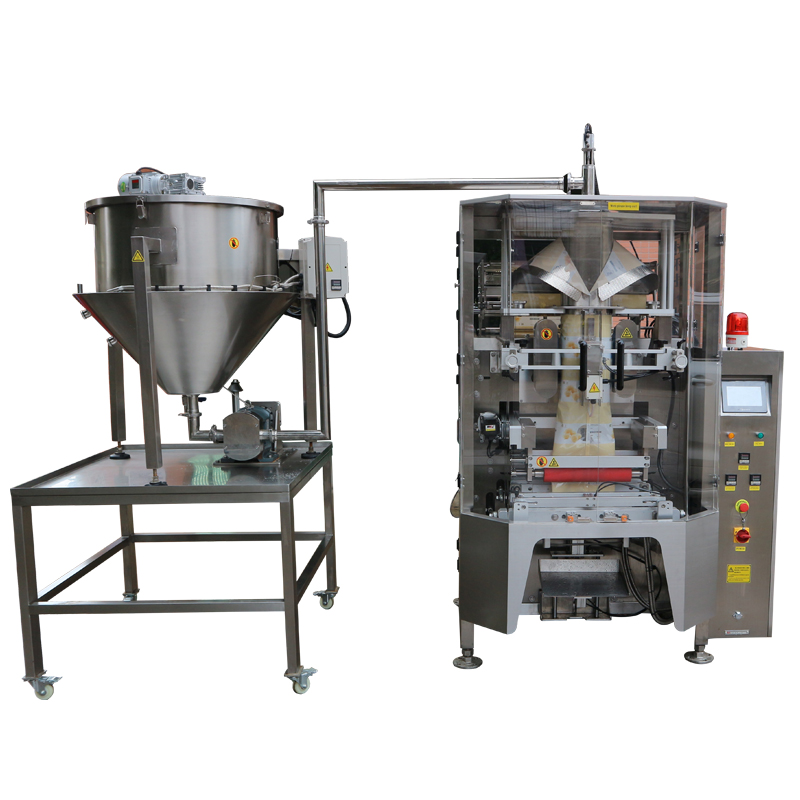

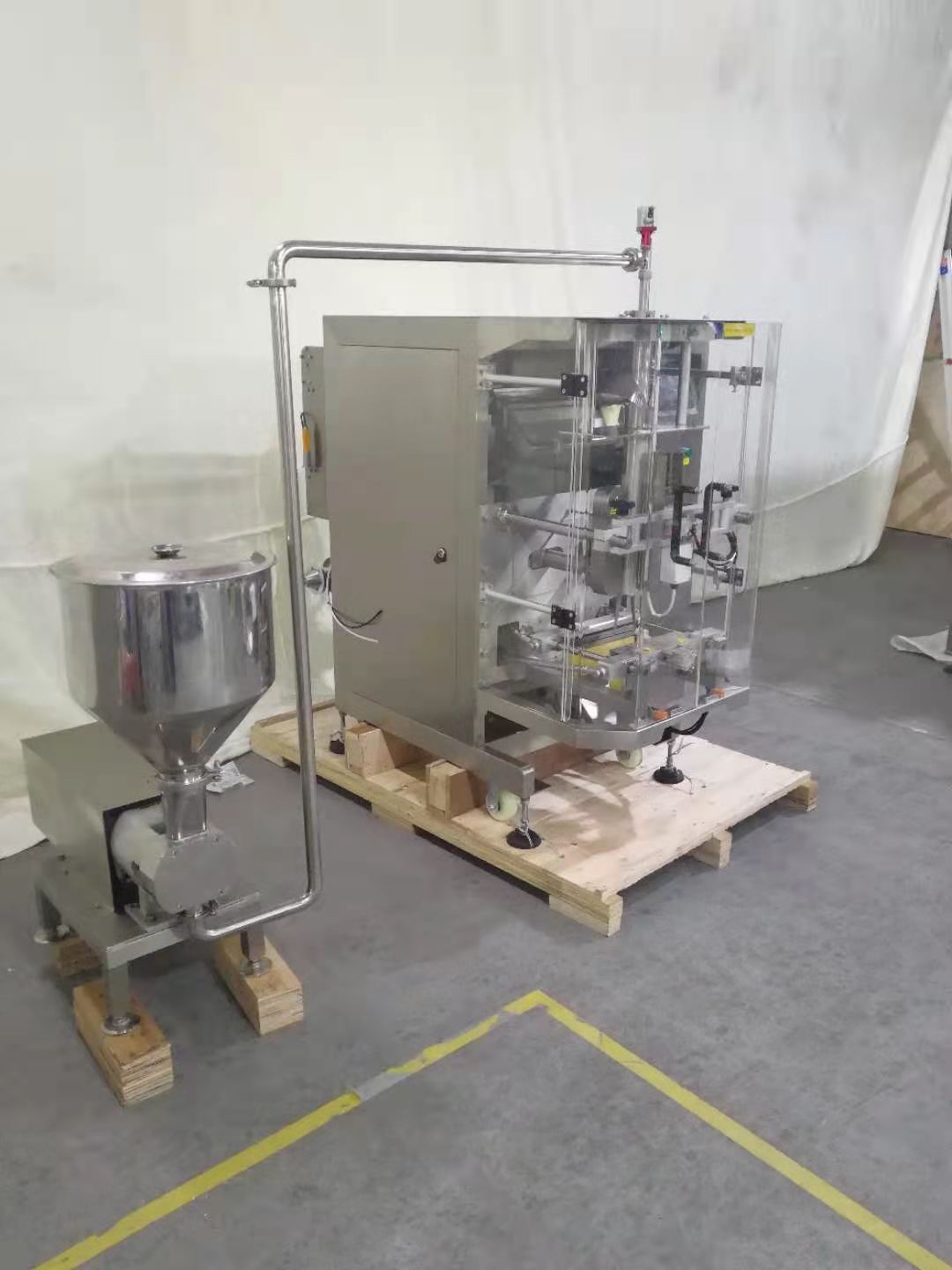

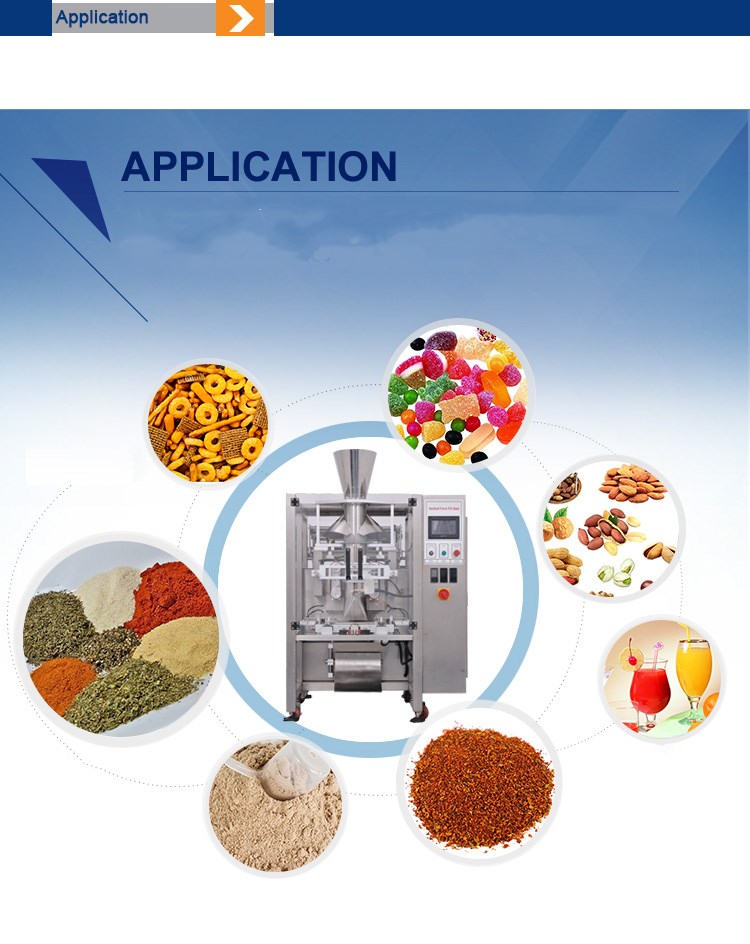

The TOPY Vertical Packing Machine is versatile and suitable for packaging free-flow powders (like sugar, spices, and detergents), granules & seeds, dry or frozen foods, confectionary, biscuits, and even small non-food industrial items like bolts and plumbing parts.
Depending on the specific model selected, the bag length can range from 70mm to 500mm, and the bag width can range from 60mm to 400mm.
The packaging speed varies by model. The TOPY-VP420 can reach up to 10-70 bags per minute, while the larger scale TOPY-VP800 operates at a stable speed of 10-30 bags per minute.

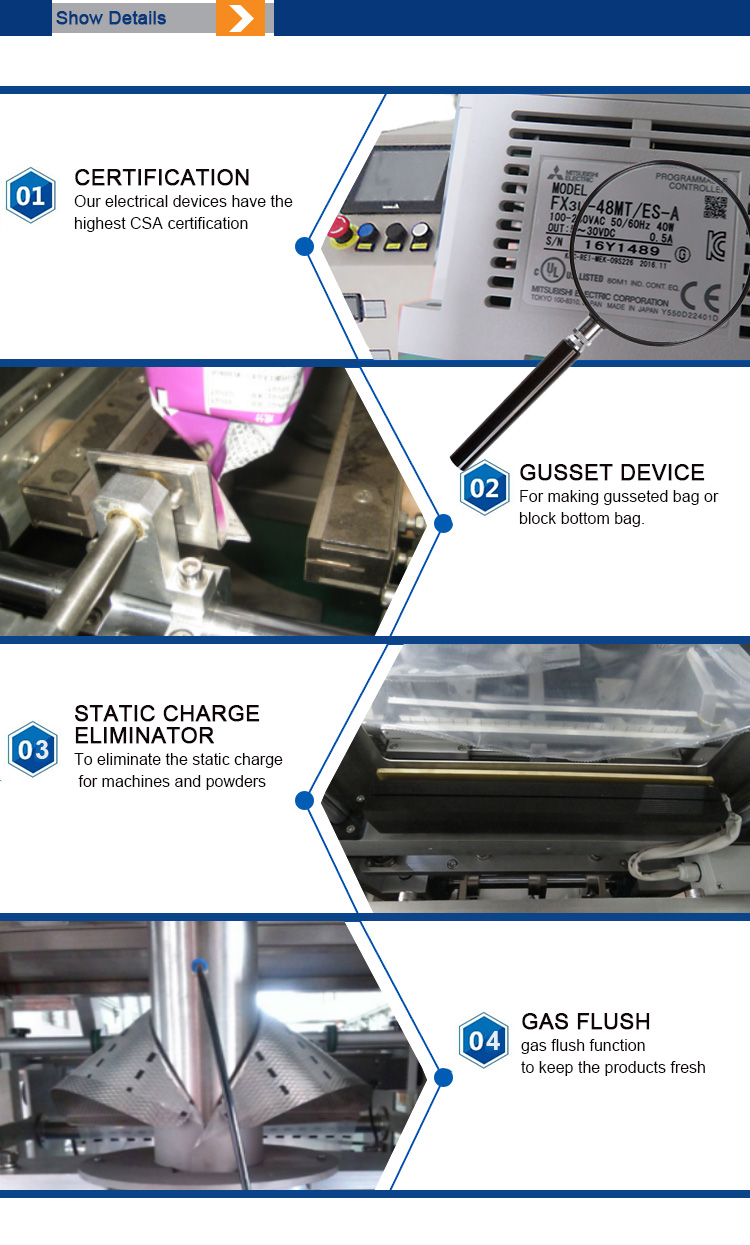

The machines feature advanced PLC controllers with an intuitive touch screen interface, along with servo-driven film transport and end seal jaws to ensure precise bag forming and sealing.
The power requirements range from 2.2kw to 4.5kw under a standard 220V 50/60HZ power supply. Air consumption ranges between 0.4m³/min and 0.7m³/min depending on the machine size.
Yes, the TOPY Vertical Packing Machine is built with a high-quality stainless steel frame, making it durable, easy to clean, and fully compliant with hygienic standards for packaging food products.
